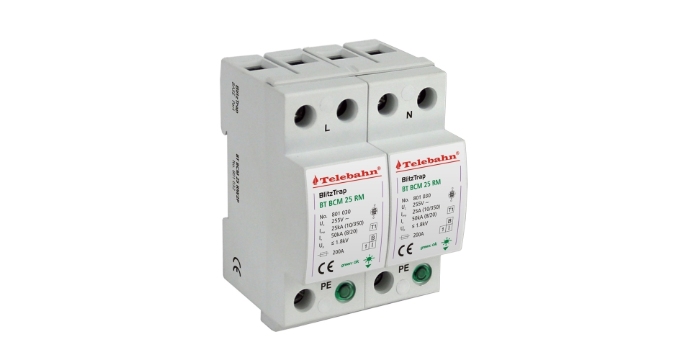

Type 1 SPD -BT BCM 25 RM/2P

Type 1 SPD BT BCM 25 RM/2P(801032) is designed to protect low voltage devices from lightning and surge damages, specially designed for class l TN 220V/230V AC system (“2+0” circuit), mainly usedin power supply system such as power distribution-room,distribution-cabinet and other important power supply system.Designed according to IEC 61643-11:2011 ; EN 61643-11:2012; GB 18802.1-2011.

  • Type

    BT BCM 25 RM/2P

  • Art.-No.

    801032

Inquiry
Download Datasheet
Type 1 SPD
Type 1 SPD (Surge Protective Device)
Location of Use:
Main Distribution Boards
System Type:
Single Phase，TN
Modules:
2P
Protection Elements:
High Energy GDT
High Surge Currents:
limp= 25 kA (10/350μs)， Imax=100kA(8/20μs)

Type 1 SPD

Type 1 SPD (Surge Protective Device) is a type of transient overvoltage protector designed to safeguard electrical equipment from lightning strikes or sudden voltage overloads. It serves as the first line of defense, effectively mitigating surges at the power entry point, ensuring the safety and reliability of electrical systems in industrial, commercial, and residential applications.
Type 1 Surge Protection for Low Voltage Systems

Features

"Features: Type 1 SPD offers unipolar protection, primarily designed to mitigate large-scale overvoltage events like lightning strikes. It has strong breakdown resistance, capable of withstanding high surge voltages to effectively protect electrical systems. Typically installed at the main distribution panel or main cable entry point, it ensures robust protection and system reliability.
Surge Protection for Electrical Systems (Type 1 SPD)

How it works

Operating Principle: Type 1 SPD reduces peak voltages from overvoltage sources like lightning to safe levels, protecting electrical equipment from damage. It quickly conducts and discharges excess voltage to the ground, effectively eliminating potential hazards and ensuring the safety and stability of the electrical system."
Type 1 SPD for Electrical Systems

Scope of application

Applications: Ideal for high-protection electrical systems in homes, office buildings, and factories. Widely used in lightning-prone areas or where equipment is sensitive to overvoltage, ensuring reliable system protection.
Primary Surge Protection Device (Type 1 SPD)

Scope of application

Installation Requirements: Type 1 SPD must be installed following relevant standards and regulations, ensuring proper and secure wiring. A reliable connection to the grounding system is essential to effectively divert overvoltage, ensuring optimal protection for electrical systems
Type 1 Surge Protector with Lightning Strike Protection

Technical Data

Product Showcase

Type 1 SPD for Low Voltage Power Distribution
Mounting
Type 1 SPD for Main Distribution Board
