Transient Voltage Surge Suppressor -BT P BCM12.5 275 RM/1+N
The Transient Voltage Surge Suppressor BT P BCM12.5 275 RM/1+N(801427) operates at LPZ 0A-2 and higher locations to defend low-voltage equipment from surge threat. The SPD Class I+II (Class B+C) structure adopts this product for single-phase 220V / 230V TT/TN (1+1 circuit) power supply systems. The product operates under the design guidelines of IEC 61643-11:2011 and EN 61643-11:2012 and GB 18802.1-2011.
-
Type
BT P BCM12.5 275 RM/1+N
-
Art.-No.
801 427
Inquiry
Download Datasheet
Location of Use:
Main Distribution Boards
Main Distribution Boards
System Type:
Single Phase, TT/TN
Single Phase, TT/TN
Modules:
Pluggable Design
Pluggable Design
Protection Elements:
High Energy MOV+ High Energy GDT
High Energy MOV+ High Energy GDT
High Surge Currents:
limp=12.5/37.5kA(10/350μs), Imax=65/100kA(8/20μs)
limp=12.5/37.5kA(10/350μs), Imax=65/100kA(8/20μs)
A Transient Voltage Surge Suppressor acts as a dependable surge protection system for electric power systems operating at 220V/230V single phase. The device effectively eliminates overvoltage transients that form from lightning strikes and power disturbances. The system adopts a small yet modular structure with integrated thermal safety elements integrated into its design. Suitable for industrial, commercial, and residential applications.
Transient Voltage Surge Suppressor (TVSS)
The Transient Voltage Surge Suppressor (TVSS) exists as a technological solution meant to protect cameras and monitoring equipment together with power systems as well as communication network infrastructure. Power disturbances originating from lightning strikes and switching operations and various other power disturbances can be effectively suppressed by TVSS devices which therefore enables protected equipment with operational stability and extended lifespan.
Key Features
- Efficient Surge Suppression: Provides fast and effective protection against transient voltage surges for valuable devices.
- Wide Voltage Compatibility: Functions across low and medium voltage levels, making it suitable for industrial, commercial, and residential applications.
- Modular Design: Compact form factor ideal for integration into distribution panels and cabinets, simplifying service and replacement processes.
- Thermal Protection: Equipped with thermal disconnect mechanisms to stop operation under overload or aging conditions.
Applications
- Protection of industrial equipment
- Power supply protection for commercial buildings
- Residential power systems
- Data centers and server rooms
- Communication and network equipment
- Military and medical equipment
Technical Specifications
Nominal Voltage: 250V / 275V / 480V Maximum Discharge Current (Imax): 10 kA to 100 kA Protection Modes: L-N, L-G, N-G, or L-L Response Time: < 25 nanoseconds Installation Type: DIN-rail or panel-mounted Operating Temperature: -40°C to 85°C
Advantages
- Fast Response: Rapidly protects electronic devices from overvoltage damage.
- Enhanced Device Longevity: Correct application of the system extends the operational lifespan of connected equipment.
Technical Data

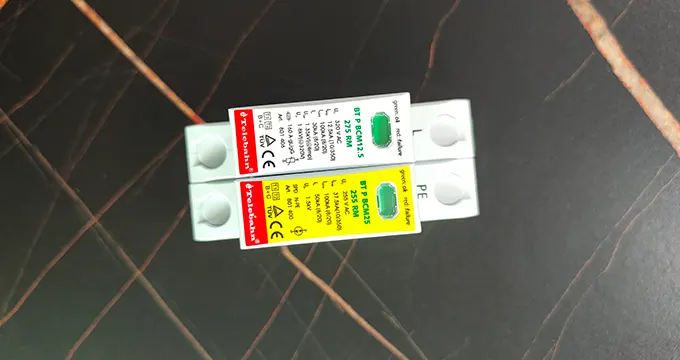

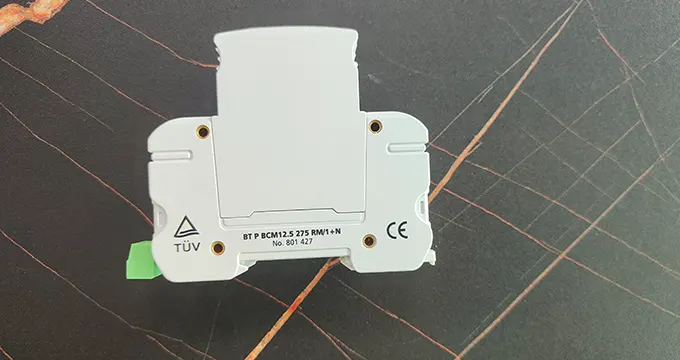

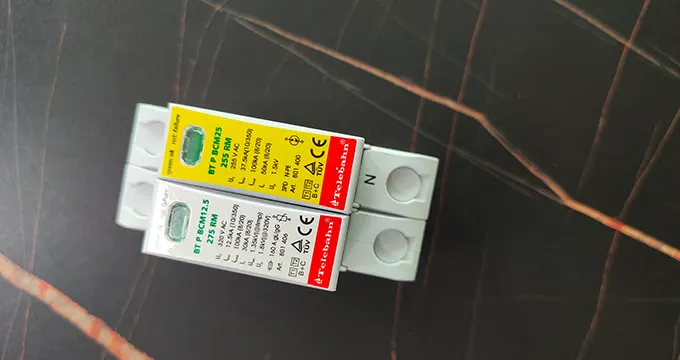

Product Showcase

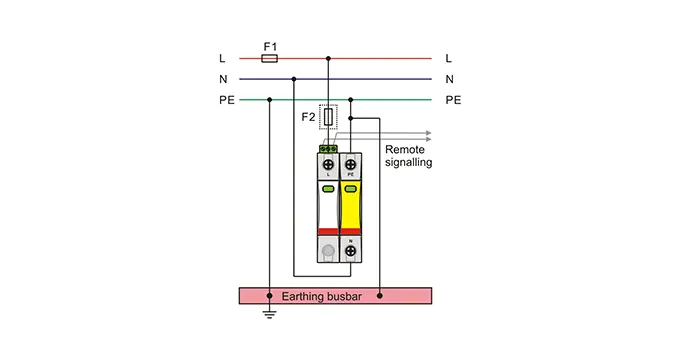

Mounting
