Surge Suppressor Protector -BT P C 2P 385 RM

Surge Suppressor Protector BT P C 2P 385 RM(810201) is for installation at LPZ 0B-1 or higher, protecting low voltage equipment from surge damage. Applied in modular SPD Class II (Class C) for single phase 220V/ 230V AC TN(“2+0” circuit) power supply system. Designed according to IEC 61643-11:2011 ; EN 61643-11:2012; GB 18802.1-2011.

Type

BT P C 2P 385 RM
Art.-No.

810201

Inquiry

Download Datasheet

385V 20kA 40kA Surge Protection for Overvoltage Protection

385V 20kA 40kA Surge Protector with Easy Installation

Location of Use:
Sub-Distribution Boards

System type:
Single Phase, TN

Protection Elements:
High Energy MOV

Surge Ratings: In=20kA(8/20μs)

High Surge Currents: Imax=40kA(8/20μs)

The Surge Suppressor Protector - BT P C 2P 385 RM offers exceptional surge protection with a high capacity of up to 20 kA (8/20 µs), ensuring reliable defense against overvoltage and lightning strikes. Its compact two-pole design fits seamlessly into various installations, while modular replaceability allows for quick and easy maintenance with minimal downtime. Integrated visual indicators provide real-time status monitoring, enhancing operational efficiency. Fully compliant with IEC 61643-11 standards, it guarantees safety and high performance. By safeguarding sensitive equipment and reducing the risk of damage, it helps extend equipment lifespan, minimize downtime, and lower maintenance and repair costs

Surge Suppressor Protector - BT P C 2P 385 RM

The BT P C 2P 385 RM is a high-performance surge suppressor designed to protect electrical systems from overvoltage caused by lightning strikes and power surges. Its robust design and advanced features make it ideal for industrial, commercial, and residential applications.

385V Surge Protector with ISO Certification

Key Features:

Efficient Surge Suppression:
- Provides reliable protection against surges up to 20 kA (8/20 µs), ensuring system safety.
Compact Design:
- Space-saving two-pole configuration suitable for various installations.
Modular Replaceability:
- Plug-and-play modules allow for quick and easy maintenance without system downtime.
Real-Time Monitoring:
- Equipped with visual indicators for easy monitoring of operational status.
Standards Compliant:
- Fully compliant with IEC 61643-11, meeting international safety and quality standards.

385V Surge Protection with RoHS Compliance

Technical Specifications:

Nominal Voltage (Un): 385 V AC
Maximum Continuous Operating Voltage (Uc): 385 V AC
Surge Capacity: 20 kA (8/20 µs)
Voltage Protection Level (Up): ≤ 1.5 kV
Response Time: < 25 ns
Enclosure Rating: IP20

385V Surge Protection Device with CE Marking

Applications:

Residential and commercial power distribution systems
Industrial machinery and electrical equipment
Data centers, telecommunications networks, and sensitive electronics

385V Surge Protection for Lighting Systems

Benefits:

Protects critical equipment from damage caused by overvoltage and lightning strikes Enhances system reliability and reduces maintenance costs Compact design fits seamlessly into existing electrical setups

385V 20kA 40kA Surge Protection Device for Power Distribution

Advantages

Our surge protector module, designed for lightning protection and mitigation of electrical power spikes, features a maximum surge capacity of 75 kA. This industrial-grade AC electrical and lightning SPD is rated for 75 kA at 120V. Detailed specifications and dimensions, along with a CAD drawing, are available in the Transtector TVSS AC power protection device PDF datasheet for the I2R-75KR120

385V 20kA 40kA Surge Protection for Electrical Systems

Technical Data

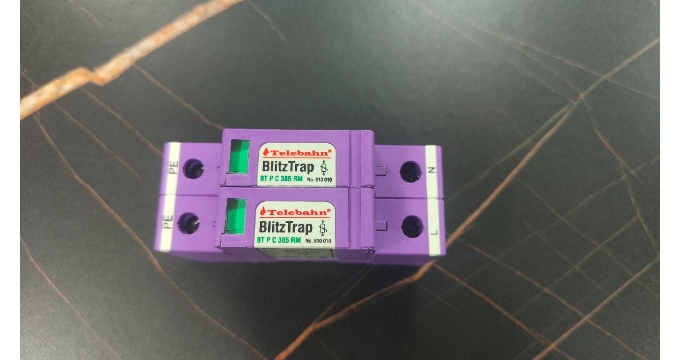

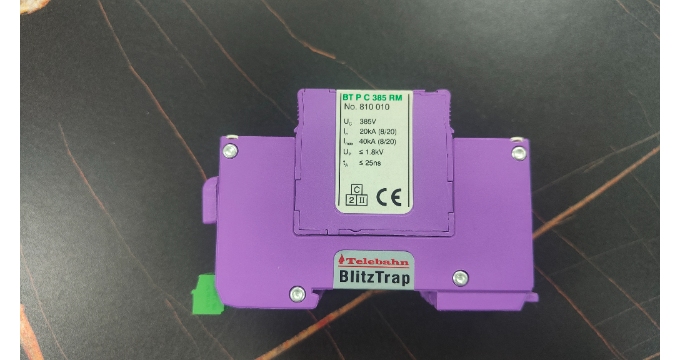

Product Showcase

385V 20kA 40kA Lightning Surge Protector

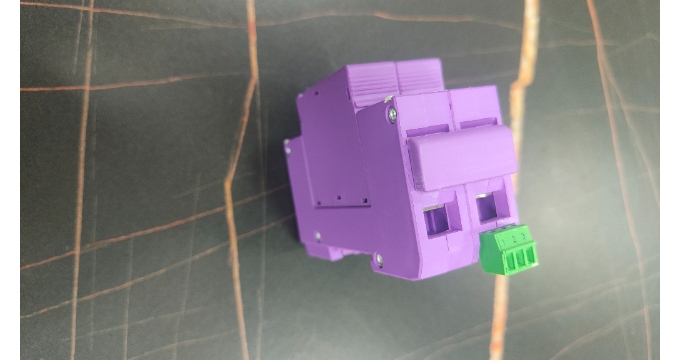

Mounting

385V Surge Protection for Power Supplies

385V Surge Protector for Power Distribution Systems

Start Your Project

We will respond to you within 24 hours after receiving your request email.

3 Years Warranty
Free Customized Design
Welcome OEM and ODM Service
CE RoHS CB KEMA TUV Certificates
Surge Protecetive Device（SPD）Factory
30+ Years Surge Protector SPD Experiences

Type	BT P C 2P 150 RM	BT P C 2P 275 RM	BT P C 2P 320 RM	BT P C 2P 385 RM	BT P C 2P 440 RM
According to IEC 61643-11/EN 61643-11	Class II / Type 2
System mode	Single Phase， TN System (“ 2+0 ” circuit)
Nominal voltage [UN](50/60Hz)	120V	230V	230V	230V	400V
Rated voltage (max. continuous voltage) [Uc] (50/60Hz)	150V	275V	320V	385V	440V
Nominal discharge current (8/20μs) [In]	20kA	20kA	20kA	20kA	20kA
Max. discharge current (8/20μs) [Imax]	40kA	40kA	40kA	40kA	40kA
TOV Withstand 5s [UT]	175V/5sec	335V/5sec	335V/5sec	335V/5sec	580V/5sec
Voltage protection level at In [Up]	≤ 0.7kV	≤ 1.25kV	≤ 1.5kV	≤ 1.8kV	≤ 2.0kV
Voltage protection level at 5kA [Up]	≤ 0.55kV	≤ 1.0kV	≤ 1.2kV	≤ 1.35kV	≤ 1.7kV
Response time [tA]	≤ 25ns
Operating temperature range [Tu] / Operating state / Failure indication	-40°C…+80°C, Green / Red
Cross-sectional area	1.5mm² ~ 25mm²solid / 35mm² flexible
Mounting on / Number of remote terminals	35mm DIN rail, EN 60715 / One
Enclosure material	Purple module / purple base, thermoplastic, UL 94-V0
Dimension	2 mods (36mm)
Certification	CE; RoHS;ISO 9001:2015；REACH(test report）
Degree of Protection/Place of installation	IP 20/Indoor
Type of remote signaling contact	Switching contact
Switching capacity a.c.	250V/0.5A
Switching capacity d.c.	250V/0.1A, 125V/0.2A, 75V/0.5A
Cross-sectional area for remote signaling contact	Max. 1.5mm² solid/flexible
Ordering Information
Type	BT P C 2P 150 RM	BT P C 2P 275 RM	BT P C 2P 320 RM	BT P C 2P 385 RM	BT P C 2P 440 RM
Art.-No.	810203	810202	810205	810201	810204
Packing unit	1pc(s)	1pc(s)	1pc(s)	1pc(s)	1pc(s)
