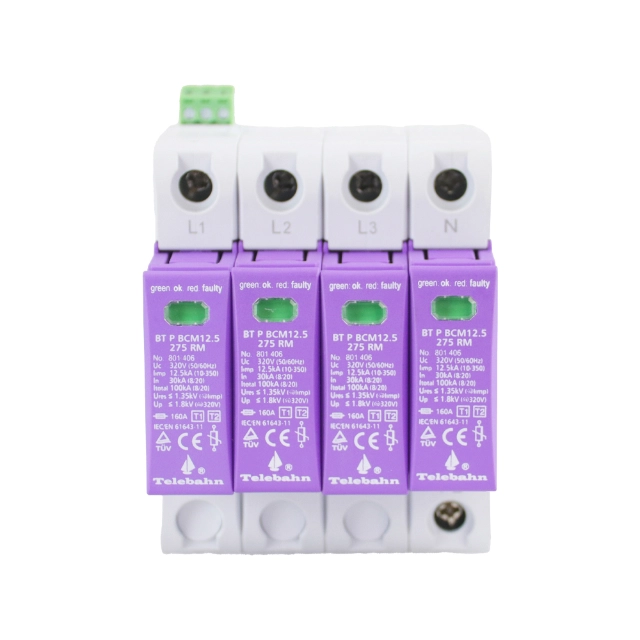

Surge Protector Devices -BT P BCM12.5 275 RM/4P
The Surge Protector Devices BT P BCM12.5 275 RM/4P(801422) operates from LPZ 0A-2 and up to protect low voltage equipment against surge attacks. This SPD system operates as a modular module of Class I+II (Class B+C) for providing protection to three-phase TT/TN-S(“3+1” circuit) power supply systems. The device follows standards of IEC 61643-2011 and EN 61643-11:2012 and GB 18802.1-2011.
-
Type
BT P BCM12.5 275 RM/4P
-
Art.-No.
801 422
Inquiry
Download Datasheet
Location of Use:
Main Distribution Boards
Main Distribution Boards
System Type:
3 Phase TT/TN-S
3 Phase TT/TN-S
Housing:
Pluggable Design
Pluggable Design
Protection Elements:
High Energy MOV
High Energy MOV
High Surge Currents:
limp=12.5kA(10/350μs), Itotal=100kA(8/20μs)
limp=12.5kA(10/350μs), Itotal=100kA(8/20μs)
The Surge Protector Devices functions as a high-performance surge protector system made for use in TT/TN-S three-phase power grids. Surge Protector Devices enables safety against overvoltage and surge damage to low-voltage equipment through its capacity to handle 12.5 kA surge currents. Ideal for industrial and commercial applications this surge protector system has modular features together with real-time status indicators for improved reliability in prolonged use.
Surge Protector Devices
Electrical systems together with equipment need protection from overvoltage using Surge Protector Devices (SPD) which defend against consequences of lightning strikes alongside power surges and switching operations. The devices shield delicate electronic systems to maintain equipment operation stability while extending their lifetime.
Key Features
- High Surge Capacity: Provides robust protection for equipment against powerful electrical surges, ensuring high effectiveness in safeguarding devices.
- Wide Voltage Range: Suitable for diverse applications, from low-voltage residential systems to high-voltage industrial setups, offering flexibility in deployment.
- Modular Design: Multiple SPD devices come with interconnected modules that can be easily replaced for regular maintenance, ensuring long-term reliability.
- Real-Time Monitoring: Includes visual or remote status indicators for functionality checks, allowing for proactive maintenance and troubleshooting.
Technical Specifications
- Surge Current Capacity: 10 kA to 100 kA (varies by model)
- Voltage Protection Level: ≤ 1.5 kV
- Response Time: < 25 ns
- Mounting Options: DIN rail or panel-mounted options available
- Protection Modes: Single-phase, three-phase, or multi-mode configurations
Applications
- Residential Electrical Panels: Protects household electrical systems and consumer electronics from electrical surges.
- Industrial Systems: Safeguards power distribution units and machinery setups from transient voltage surges.
- Data Centers and IT Infrastructure: Provides surge protection for telecommunications equipment and critical power distribution units in data centers.
- Renewable Energy Installations: Offers protection to solar and wind power systems from electrical surges, ensuring system integrity.
Benefits
- Extended Equipment Lifespan: Prevents damage from electrical surges, prolonging the life of sensitive equipment.
- Reduced Maintenance and Downtime: Minimizes repair costs and reduces downtime, improving operational efficiency.
- Improved Safety and Reliability: Enhances overall safety and reliability of electrical installations, protecting both equipment and personnel.
Technical Data

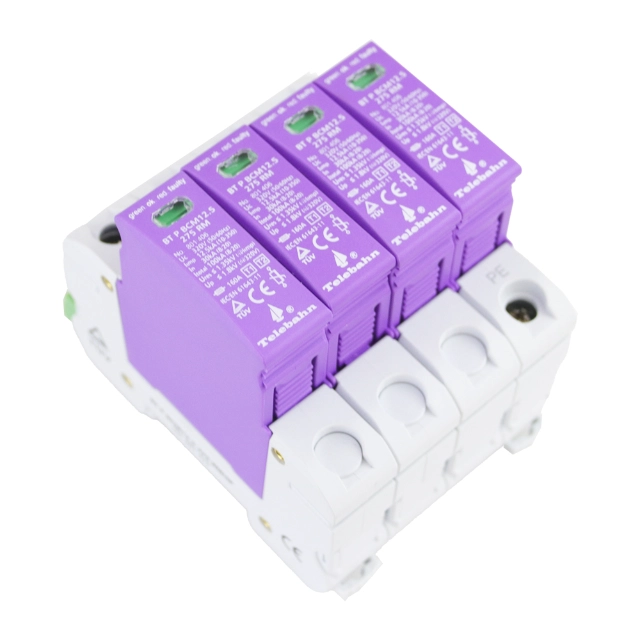

Product Showcase
Mounting
