Surge Protective Device -BT P BCM 25 RM/3+N
Surge Protective Device -This means BT P BCM 25 RM/3 +NApplication: Surge Protective Device BT P BCM 25 RM/3+N(800915) for installation at LPZ 0A-1 or higher for the protection of low voltage equipment against surge. Used for modular SPD Class I + Class II (Class B + Class C) for TT/TN-S (“3+1” circuit) power supply system. The protector device is for installation at LPZ 0A-1 or higher, protecting low-voltage equipment from surge damage. Applied in modular SPD Class I + Class II (Class B + Class C) for TT/TN-S (“3+1” circuit) power supply system. Designed according to IEC 61643-11: 2011; EN 61643-11:2012; GB 18802.1-2011.
-
Type
BT P BCM 25 RM/3+N
-
Art.-No.
800 915
Inquiry
Download Datasheet
Location of Use: Main Distribution Boards
System Type:
3 Phase TT/ TN-S
3 Phase TT/ TN-S
Modules:
3P+NPE
3P+NPE
Protection Elements:
High Energy GDT
High Energy GDT
High Surge Currents:
limp=25 kA/50 kA (10/350μs), Imax=75kA(8/20μs)
limp=25 kA/50 kA (10/350μs), Imax=75kA(8/20μs)
Surge protective device type 1 provides overvoltage protection in low voltage system applications. It is fixed in the most important main distribution boards for the protection of delicate appliances. This SPD is suitable for TT/TN-S power supply systems – protecting against high surge currents. It minimizes possible overvoltage dangers, extending the durability and dependability of all related devices. Surge Protection Device is suitable for residential, businesses, and industries and is a solution for complete surge protection.
Surge Protective Device (SPD)
Surge Protective Device (SPD) is a protection equipment located at the point of utilization of electrical power to shield end-user’s appliances and other critical line-connected equipment from enhanced transient over-voltage. It is most suitable for outlets, individual devices, or small circuits, it has small dimensions, a high speed of reaction, and efficiently protects. It successfully protects against power surges, thus maintaining operation safety and equipment longevity.
Max.Uc 150V/255V/320V/440V Effect
Overvoltage amplitudes rely on the Surge Protective Device (SPD) to lessen the impact to prevent damage to most equipment. It also gives further safeguard by eliminating surge currents that might penetrate and possibly damage delicate gizmos. Applicable in domestic and business environments, SPDs increase protection for the used system, reducing the potential downtime, and increasing the service life of all the connected electrical equipment and devices.
Comprehensive Protection for Sensitive Electronics
SPDs are intended for distributed use, and installed on branch circuits within structures. They offer dependable safeguards for low voltage as well as sensitive electronics. They are used in combination with other types of SPDs to create an encyclopedic surge protection system indispensable for home and work electrical networks.
Reliable Overvoltage Control for Electrical Safety
Advanced SPDs are constantly adaptive and use electromagnetic conversion technology to change conductive materials into conductors, to protect specified equipment by diverting overvoltage. Having a typical trip level greater than 500V, they effectively protect residential and commercial facilities from transient surge effects that can endanger sensitive electronics and low-voltage systems.
Last Line of Defense for Electrical Systems
Surge Protective Devices (SPDs) are connected after power switches or distribution boxes but not necessarily downstream of them. As specified before, they are used as the final protection shield in an electrical system and safeguard connected equipment from transient overvoltage. Designed for protecting delicate equipment, SPDs guarantee steady performance and protect equipment from surges in homes and commercial establishments.
Ideal for Low-Voltage Systems and Electronics
Low Volt SPDs are manufactured for application on systems that require extra protection in low voltage circuits. Commonly applied in the protection of delicate electronics they are highly effective in controlling the effects of transient overvoltages. Applying the SPDs in residential, commercial as well as industrial settings keep safe the attached appliances and devices thus increasing their life cycle.
Technical Data

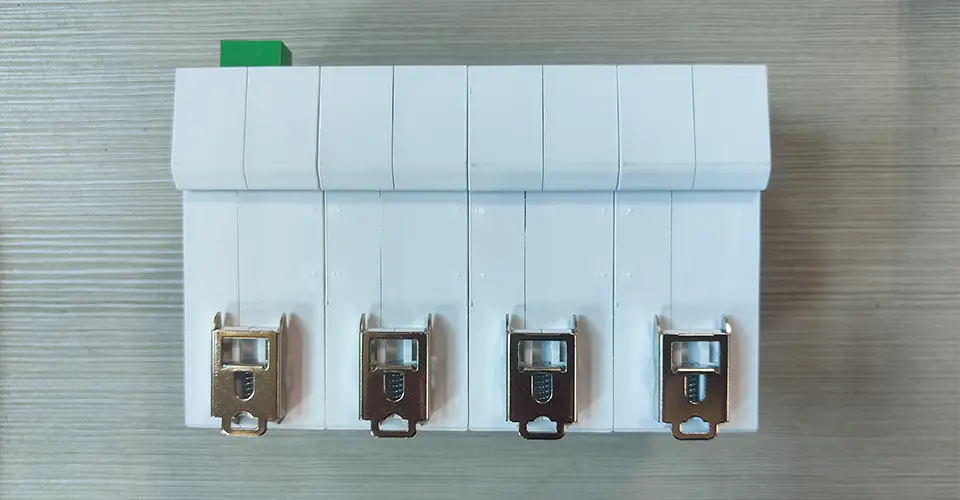

Product Showcase

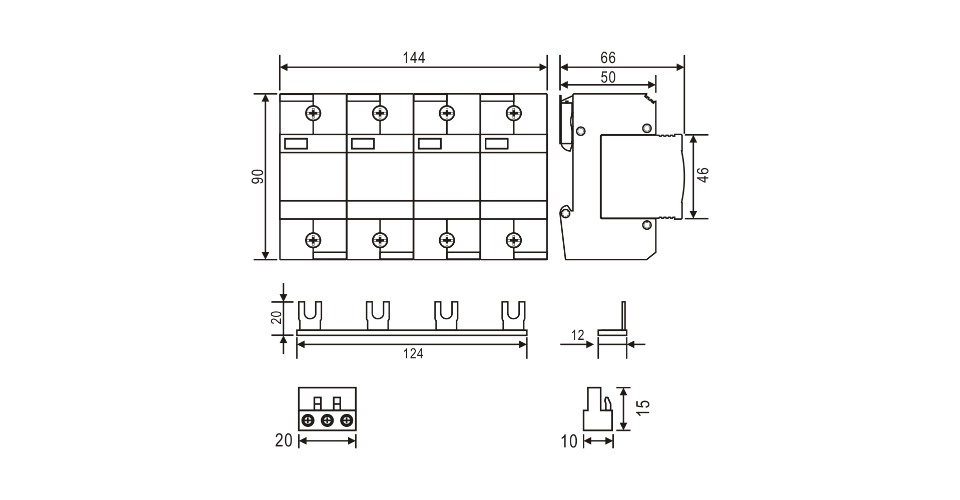

Mounting
