Surge Protection Device For Led Driver – BT D 275 LED HS SPD

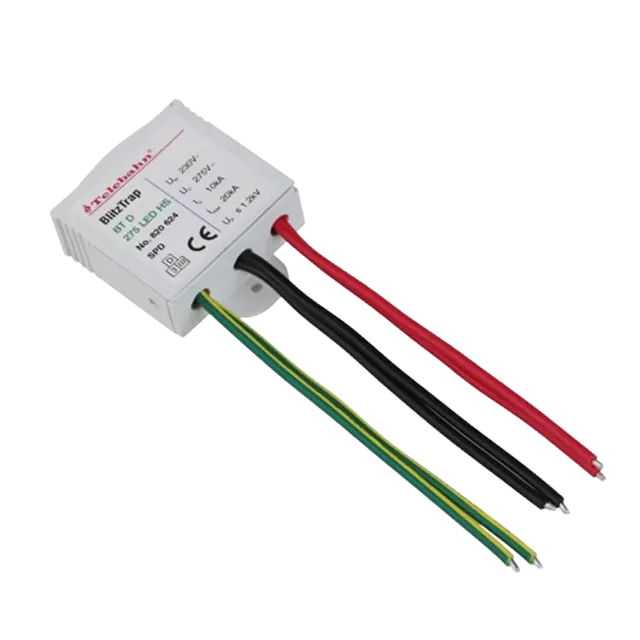

Led Driver – SYRGE Protection Device for BT D 275 LED HS (820624)
This BT D 275 LED HS Surge Protection Device is ideal for the protection of LED lights and outdoor LED drivers against surges. The RSP-50039R also has an IP67 status and is therefore perfect for street lighting and usage in outdoor conditions.
Surge Protection Device for LED Drivers safeguards LED lighting systems from voltage spikes, power surges, and lightning strikes. It absorbs excess energy, preventing damage to the driver and ensuring stable, reliable performance. Ideal for commercial and residential lighting, it extends the lifespan of LED fixtures and enhances safety.
Introduction to Surge Protection Devices
The overvoltage protection enhances the stability and longevity of the LED drivers. It is the affirmative steady contribution of this device and is very significant to ensure the efficiency and longevity of LED illuminated systems noteworthy of rigorous conditions.
How it works
The Surge Protection Device (SPD) limits surge currents which affects the LED drivers so that they will not harm the circuits. It also controls the voltage at the input so that no high voltage gets through to the drivers making it reliable and long-lasting. As for circuits, MOV (Metal Oxide Varistor), Diode Surge Suppressor, and Avalanche Diode are employed to shield the circuits from over-voltage; by directing the excess voltage towards the ground.
Surge Protection Devices for LED drivers include
Rated Voltage and Current: Ensure that the SPD selected provides the proper interface for the LED driver.
Response Time: Choose devices with a short response time to minimize damage.
Long-term Stability: The device selected should remain effective even after a long period of use.
Temperature Range: Select the surge protector that matches the thermal environment required for the LED application.
When selecting a Surge Protection Device for LED drivers, consider the following factors
Installation Location: Position the device close to the LED driver to ensure any surge doesn't affect the rest of the circuit.
Correct Wiring: Follow the manufacturer’s guide for proper wiring to ensure the right connections.
Regular Inspection: Periodically inspect the device to ensure it is functioning properly and providing adequate protection.
When installing a Surge Protection Device for LED drivers, consider the following
Installation Location: Position the device close to the LED driver to ensure any surge doesn't affect the rest of the circuit.
Correct Wiring: Follow the manufacturer’s guide for proper wiring to ensure the right connections.
Regular Inspection: Periodically inspect the device to ensure it is functioning properly and providing adequate protection.
The Role Of Surge Protection Devices
Protects LED Drivers: Safeguards LED drivers from high voltages that could potentially damage them.
Increases Lifespan: Unlike a nonlinear load, an LED can reduce overvoltage, easing the strain on the LED driver and electricity.
Enhances System Reliability: Reduces faults, making the LED lighting system more reliable.
Boosts Efficiency and Reduces Maintenance: Prevents system failures, reducing maintenance costs while increasing productivity.
Technical Data
Type
BT D 275 LED HS
Art.-No.
820624
According to IEC 61643-11 / EN 61643-11
Class II + Class III / Type 2+ Type 3
Nominal voltage [UN](50/60Hz)
230V
Rated voltage (max. continuous d.c. voltage) [Uc](L-N / N-PE)(50/60Hz)
275V / 255V
Nominal discharge current (8/20μs) [In]
10kA
Nominal discharge current (8/20μs) [Imax]
20kA
Nominal current [IL]
10A
Combination wave [Uoc]
20kV
Voltage protection level(L-N)[Up]
≤ 1.0kV
Voltage protection level(N-PE)[Up]
≤ 1.5kV
Follow current extinguishing capability at Uc(N-PE)[If]
100Arms
Response time(L-N, L/N-PE)(TA)
≤ 25ns / ≤ 100ns
Max. backup fuse
16A gL/gG
Short withstand capability at max. backup fuse
10kArms, 8/20μs
TOV voltage(L-N, N-PE)
335V/5sec 1200V/200ms
Operating temperature range [Tu]
-40°C…+80°C
Waterproof protection level
IP 67
Terminal wires
6 lines,1.5 square millimeter solid,length 120mm
Mounting on
3xM4.5mm screws
Enclosure material
gray/purple themoplastic,UL94-V0
Warranty Period
3 Years
Weight
70g
Test standards
IEC 61643-11:2011 ; EN 61643-11:2012; GB 18802.1-2011
Operating state / Failure indication
Green / Red
Certification
CE, RoHS
