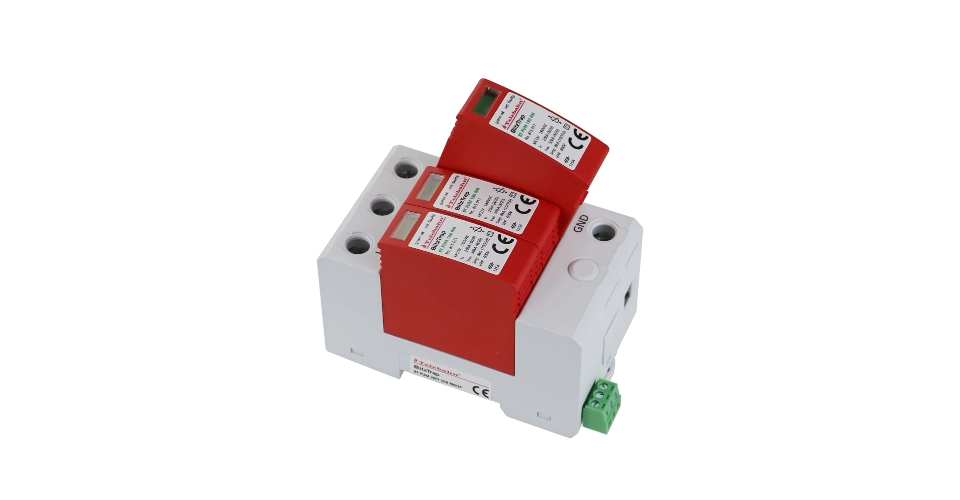

Surge Arresters for Electrical Systems -BT PUM 3WY 208 RM/3P
-
Type
BT PUM 3WY 208 RM/3P
-
Art.-No.
815071
-
Features
1. Combined module SPD for 3 Phase Wye electrical systems (3W+G circuit). 2. Max. Discharge current (Imax) up to 50kA (8/20µs). 3. Short-circuit current rating (SCCR) 200kA. 4. Double thermal disconnector device, providing more reliable protection. 5. Green window will change when fault and also provide remote alarm control at the same time.
for 3 Phase Wye electrical systems (3W+G circuit)
High Energy MOV
In=20kA(8/20μs)
Imax=50kA(8/20μs)
Surge Arresters for Electrical Systems's vigorous surge protection comes from the versatile BT PUM 3WY 208 RM/3P Surge Arrester device. The device protects critical equipment by defending against rapid overvoltage occurrences to maintain continuous operation. Modular design creates cases through which users achieve fast and easy system maintenance. BT enables electrical isolation which stops noise disturbance but PUM Surge Protection Module has the advantage of fast voltage spike response. This configuration protects all three types of conductors (live, neutral, ground) to provide reliable performance in every industrial and commercial environment, and surge protection for home.
Surge Arresters for Electrical Systems -BT PUM 3WY 208 RM/3P
The Surge Arrester -BT PUM 3WY 208 RM/3P is a robust surge protection device specifically designed for 208V three-phase electrical systems. It effectively shields sensitive equipment from damaging voltage surges, transients, and spikes caused by events such as lightning strikes, switching operations, or grid fluctuations.
Key Features
- BT (Electrical Isolation): Blocks disruptive electrical disturbances, ensuring safe operation for sensitive devices.
- PUM (Surge Protection Module): The PUM 3P configuration rapidly absorbs high-voltage surges, safeguarding connected electronics from transient voltage threats.
- 3WY (Three-Wire Configuration): Offers protection for three-phase networks, supporting live, neutral, and grounding conductors.
- RM (Modular Design): Simplifies installation and equipment changes, improving operational versatility and system durability.
Applications
- Industrial Facilities: Protects manufacturing equipment and machinery from power surges and electrical faults.
- Commercial Buildings: Provides surge protection for HVAC systems, infrastructure, and lighting setups.
- Power Distribution Systems: Ensures stable and reliable surge protection for electrical grids and distribution panels.
Working Principle
The Surge Arrester -BT PUM 3WY 208 RM/3P safeguards equipment by leading high voltage excursions beyond thresholds of safety protection to different pathways. Advanced voltage-limiting and spark gap technology enables this system to safely divert dangerous surges towards the ground or another protected outlet therefore preventing system damage to connected devices.
Technical Data
Product Showcase
