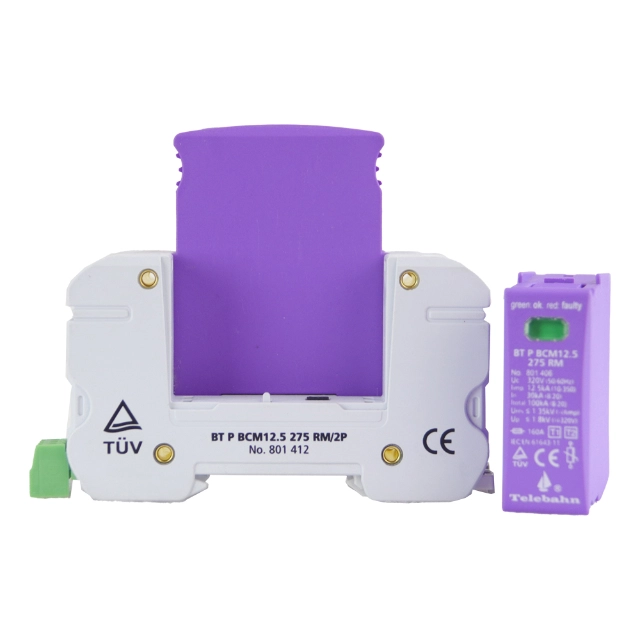

Overvoltage Protection Devices -BT P BCM12.5 275 RM/2P

Overvoltage Protection Devices BT P BCM12.5 275 RM/2P(801412) power surge protector device is for installation at LPZ 0A-2 or higher, protecting low voltage equipment from surge damage. Applied in modular SPD Class I+II (Class B+C) for single-phase TN(“2+0” circuit) power supply system. Designed according to IEC 61643-11:2011 ; EN 61643-11:2012; GB 18802.1-2011.

  • Type

    BT P BCM12.5 275 RM/2P

  • Art.-No.

    801412

Inquiry
Download Datasheet
Overvoltage Protection
T1+T2 12.5kA Surge Protection Device with TUV Certification
CE Certified T1+T2 12.5kA Surge Protection
Location of Use:
Main Distribution Boards
System Type:
Single Phase, TN
Housing:
Pluggable Design
Protection Elements:
High Energy MOV
High Surge Currents:
limp=12.5kA(10/350μs)，Imax=65kA(8/20μs)

Overvoltage Protection Device - BT P BCM12.5 275 RM/2P

The BT P BCM12.5 275 RM/2P is a high-performance overvoltage protection device designed to safeguard electrical systems against transient voltage surges. It is suitable for a variety of applications, ensuring reliable operation and extended equipment lifespan by mitigating the effects of overvoltage events caused by lightning strikes, switching surges, or electrical disturbances.
T1+T2 12.5kA Surge Protection for Data and Communication Systems

Key Features

High Surge Protection Capacity: Nominal discharge current: 12.5 kA (8/20 μs waveform). Designed for robust performance in demanding environments. Wide Voltage Compatibility: Nominal voltage: 275V. Suitable for use in single-phase systems. Compact and Durable Design: Modular DIN-rail mounting for quick and easy installation. Compact size optimized for modern distribution panels. Thermal Protection Mechanism: Built-in thermal disconnect ensures safety during overload or device wear. Indicator for Status Monitoring: Visual indicators provide real-time device status for easy maintenance and troubleshooting. Standards Compliance: Conforms to IEC 61643-11, ensuring high-quality and reliable surge protection.
12.5kA Surge Protection for Residential and Commercial Installations

Applications

  • Industrial Equipment: Protection for control panels, machinery, and automation systems.
  • Residential and Commercial: Secures home and office electrical systems from power surges.
  • Telecommunication Systems: Guards sensitive communication equipment against voltage disturbances.
  • Renewable Energy Systems: Ideal for solar or wind energy installations.
T1+T2 12.5kA Surge Protection for AC Systems

Technical Specifications

  • Protection Mode: 2-pole (L-N, N-PE).
  • Nominal Voltage (Un): 275V.
  • Maximum Discharge Current (Imax): 12.5 kA.
  • Response Time: <25 nanoseconds.
  • Mounting Type: DIN-rail.
  • Operating Temperature Range: -40°C to 85°C.
12.5kA T1+T2 Surge Protector for Power Distribution Panels

Benefits

  • Enhanced Equipment Longevity: Prevents damage from transient surges.
  • User-Friendly Installation: Quick setup with minimal maintenance required.
  • Cost-Effective Protection: Long-lasting, reliable surge suppression
T1+T2 12.5kA Surge Protector Compliant with IEC 61643-11

Technical Data

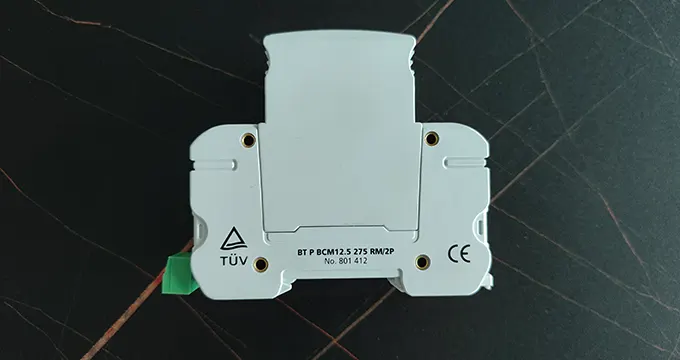

Product Showcase

T1+T2 12.5kA Surge Protection for Electrical Systems
Mounting
T1+T2 12.5kA Surge Protection for Industrial Applications
High Surge Capacity 12.5kA T1+T2 Surge Protector
T1+T2 12.5kA Surge Protection for Power Systems
