Lightning Counter -IC 07

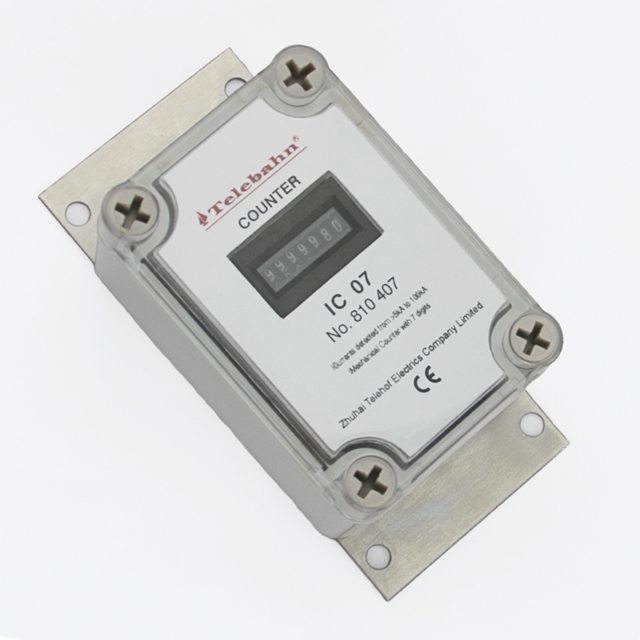

Lightning Counter IC 07(810407) is for counting the number of current discharges by earthing down conductors and 7 digits display. Adopt mechanical counting function, without any power supply, with IP65 waterproof grade can be installed for outdoor use.
  • Type

    IC 07

  • Art.-No.

    810407

Lightning Counter
Lightning Counter for Power Systems
Digital Lightning Counter
IP 65 Waterproof
Mechanical counter 0-9999999
Outdoor use
Does not require any external power supply
Joint induction

The Lightning Counter - IC 07 is a reliable and durable device designed to monitor and record lightning strikes in real-time. Equipped with high-sensitivity sensors, it accurately detects lightning events and displays cumulative counts on a clear LCD screen. Its robust construction ensures reliable performance in harsh environments, with waterproof and dustproof features rated at IP65.

The device operates efficiently with low power consumption, using either batteries or solar power, making it ideal for long-term usage. Applications include monitoring lightning protection systems for high-rise buildings, renewable energy plants, power networks, and outdoor equipment in industrial facilities

Lightning Monitoring Device

The lightning counter is a precise device designed to monitor and record lightning events. It tracks the frequency and strength of lightning strikes in a specific area or on a lightning protection system, providing reliable data for risk assessment and optimization of protective measures.
Digital Lightning Event Counter

Key Features

  • Real-Time Lightning Event Recording
    • High-sensitivity sensors accurately detect and count every lightning strike.
  • Automatic Storage and Display
    • Intuitive digital display for clear presentation of cumulative lightning counts.
  • High Durability
    • Waterproof, dustproof, and shock-resistant design for use in harsh environments.
  • Multi-Functional Options
    • Expandable features to record lightning current intensity, timestamps, and more.
  • Low Power Consumption
    • Energy-efficient design ensures long-term operation.
Lightning Protection System Counter

Technical Specifications

  • Measurement Range: Lightning current 5 kA ~ 200 kA
  • Display: LCD digital display
  • Counting Accuracy: ±1 strike
  • Storage Capacity: Up to 999,999 records
  • Power Supply: Battery-powered / Solar-powered
  • Protection Level: IP65
  • Installation Method: Screw-mounted / Rail-mounted
  • Operating Temperature Range: -40°C ~ +85°C
Surge Protection Lightning Counter

Applications

  • Lightning protection systems for high-rise buildings and communication towers
  • Wind and solar power plants
  • Monitoring of power transmission and distribution networks
  • Outdoor equipment in oil, gas, and chemical industries
  • Meteorological monitoring and research institutions
Lightning Strike Counter for Building Protection

Technical Data

Product Showcase

Strike Event Counter for Lightning Protection
Lightning Counter for Surge Protection Devices
Lightning Surge Counter
Lightning Event Counter
