Ethernet Surge Protection -BS RJ45 5V
The Ethernet Surge Protection BS RJ45 5V protects network equipment from disruption that results from surge voltage disturbances. The surge protective device connects through an RJ45 interface that uses four pairs of lines for protection. Designed according to IEC 61643-21； EN 61643-21; GB 18801.21.
-
Type
BS RJ45 5V
-
Features
1. For protecting computer data transmission system, network system and so on. 2. Good discharge capacity, low voltage protection level. 3. Quick response, high transmission speed, low signal attenuation. 4. Metallic housing RJ45 connection, easy for installation. 5. With DIN rail installation .
Inquiry
Download Datasheet

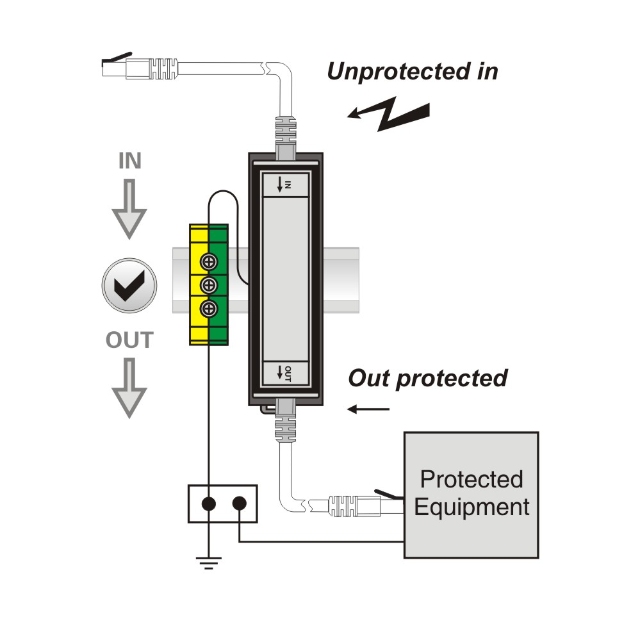

Mounting on：35mm DIN rail
100Mbits
RJ45 Connection
1 Port
5V/24V
The Ethernet Surge Protection functions as a network system protection system against power surges and lightning events. Surge protection for servers enables uninterrupted secure data transfer between systems. The product establishes quick setup procedures for the protection of routers and switches. Ideal for homes, offices, and industrial setups.
Ethernet Surge Protection - BS RJ45 5V
Protecting both Ethernet networks and their connected devices against transients resulting from lightning strikes power surges and electromagnetic interference is what the BS RJ45 5V Ethernet Surge Protection Device specifically does. This solution delivers effective data security protection for secure data transfer systems that operate in all residential commercial and industrial settings.
Key Features:
- 5V Compatibility: Operates at 5V while supporting data protection at Gigabit Ethernet speeds.
- Surge Protection: Safeguards routers, switches, servers, and end devices from transient voltage surges.
- Low Insertion Loss: Ensures optimal network performance with minimal signal degradation.
- Compact Design: Lightweight with an RJ45 interface for easy installation between Ethernet cables.
- Ultra-Fast Response: Reacts in less than one-millionth of a second to transient overvoltages.
Technical Specifications:
- Rated Operating Voltage (Un): 5V
- Maximum Surge Current (Imax): 2kA (8/20µs waveform)
- Network Compatibility: Supports 10/100/1000 Mbps Ethernet.
- Insertion Loss: ≤ 0.5 dB
- Response Time: <1ns
- Interface: RJ45 (Ethernet)
- Operating Temperature Range: -40°C to +80°C
Applications:
- Data Centers: Protects critical servers and network infrastructure from surge and lightning damage.
- Office Networks: Safeguards routers, switches, and workstations in commercial Ethernet systems.
- Residential Networks: Protects home Ethernet devices, including modems, routers, and smart home hubs.
- Industrial Facilities: Shields manufacturing control systems and operations from power interference.
Technical Data

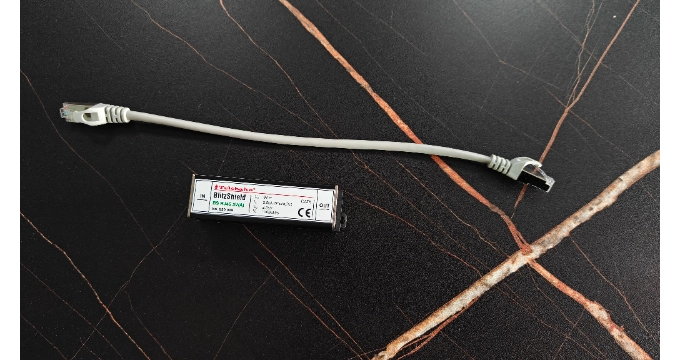

Product Showcase
