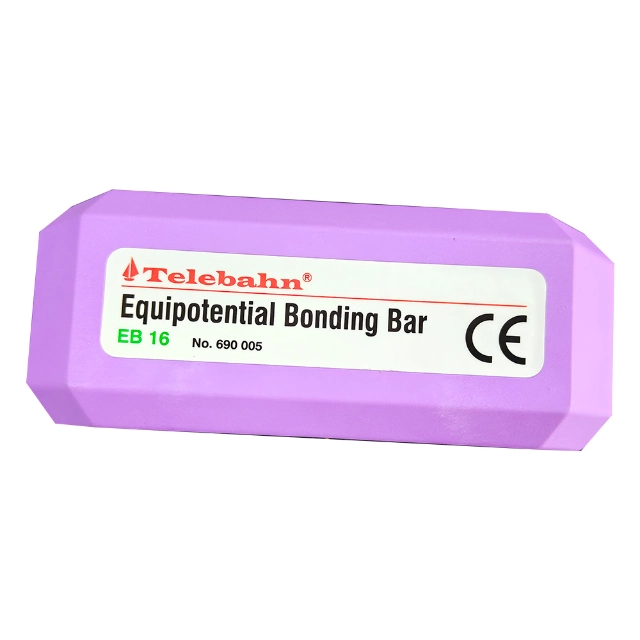

Equipotential Bonding Bar -EB 16
Equipotential Bonding Bar EB 16 (690005) is for connection of the earthing conductors of various euipment or system. EB 16 with 16 connecting terminals, with 8pcs max. cross-sectional area 25 square millimetre / 8pcs max. cross-sectional area 50 square millimetre.
-
Type
EB 16
-
Art.-No.
690005
Inquiry
Download Datasheet
Earthing Devices for lightning Equipotential Bonding
16 Ports/ 6 Ports
Free customization Design
Equipotential Bonding Bar
Purple thermoplastic，UL94-V0
Equipotential bonding bar is a grounding device. It connects metal parts and electrical equipment to the same voltage level. This keeps everything safe and stable. The equipotential bonding bar is used in data centers, telecom rooms, electrical panels, and other buildings. It is important where strong and safe grounding is needed. The equipotential bonding bar helps protect people and devices. It lowers the chance of electric shock. It also protects equipment from damage caused by surges or lightning. The bar safely carries extra current to the ground. This makes the system safer and more reliable.
Feature:
1. Copper or Tinned Copper Construction: Offers excellent electrical conductivity and corrosion resistance.2. Multiple Connection Points: Provides pre-drilled holes or lugs to connect multiple conductors efficiently.
3. Insulated Mounting Brackets: Ensures safe, isolated installation and prevents unintended grounding paths.
4. High Current Carrying Capacity: Designed to handle large fault or surge currents without damage.
5. Compact and Modular Design: Easy to install in tight spaces and scalable for various system sizes.
6. Standards Compliance: Meets international grounding and bonding requirements (NEC, IEEE, IEC).
7. Corrosion-Resistant Hardware: Equipped with stainless steel or plated fasteners for long-term durability.
8. Customizable Configurations: Available in various sizes and hole patterns to suit specific installation needs.
Advantage:
1. Enhanced Electrical Safety: Minimizes electric shock risk by equalizing potential differences.2. Prevents Equipment Damage: Reduces voltage surges and stray currents that could harm sensitive electronics.
3. Improved Lightning & Surge Protection: Acts as a centralized grounding point to safely divert fault currents.
4. Regulatory Compliance: Helps meet electrical codes and grounding standards (NEC, IEEE, IEC).
5. Simplifies Grounding Systems: Centralized bonding point makes it easier to manage multiple ground connections.
6. Reduces EMI & RFI: Helps in controlling electromagnetic interference and radio frequency noise.
7. Low Maintenance: Durable construction offers long service life with minimal upkeep.
8. Scalable and Flexible: Can be customized or expanded for growing infrastructure needs.
Applications:
1. Telecommunication Rooms: Grounds telecom racks, patch panels, and equipment to a common potential.2. Data Centers: Bonds servers, cabinets, and cable trays to prevent grounding loops.
3. Electrical Panels & Substations: Ensures safe grounding across various circuits and control systems.
4. Lightning Protection Systems: Part of the grounding network that safely dissipates lightning strikes.
5. Industrial Automation Systems: Protects PLCs, sensors, and control wiring from electrical surges.
6. Renewable Energy Installations: Used in solar and wind power systems to maintain grounding integrity.
7. HVAC & Mechanical Rooms: Bonds metal ductwork, piping, and equipment to reduce stray voltages.
8. Hospitals & Critical Infrastructure: Ensures safe and stable grounding for sensitive life-support equipment.
