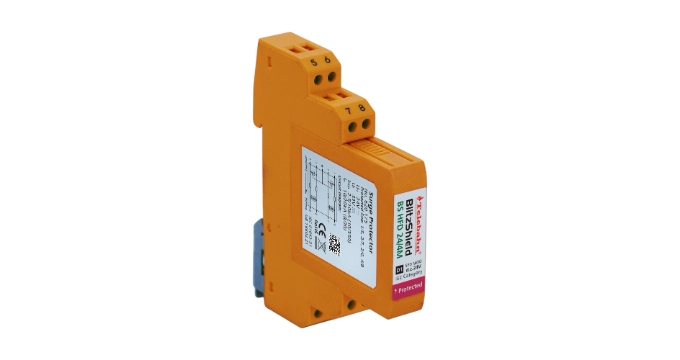

Circuit Surge Protector Work -BS HFD 24/4M

Circuit Surge Protector Work BS HFD 24/4M(620175) is for installation at LPZ 0A-2 or higher, or directly at the upstream near the protected devices. Provide protection for protecting 2 single lines sharing a common reference potential and high-frequency bus systems or video transmissions. Designed according to lEC 61643-21；EN61643-21; GB 18802.21.

  • Type

    BS HFD 24/4M

  • Art.-No.

    610040

  • Features

    1. For mounting on the 35mm DIN rail . 2. Composed by two parts: the base and the protection module. 3. The signal will not be disconnected when replacing the module. 4. High discharge capacity, low voltage protection level.

Inquiry
Download Datasheet
Circuit Surge Protector Work
Circuit Surge Protection for Industrial Equipment
Surge Protection for Electrical Circuits
35mm DIN Rail，EN 60715
0-20mA, 4-20mA
Pluggable Design
For 4 signal lines in measuring and control system
high-frequency surge protector

The BS HFD 24/4M Circuit Surge Protector is designed to protect electrical circuits in 24V systems from damaging surges, spikes, and transient voltages. It effectively absorbs and redirects excess voltage to the ground, safeguarding sensitive equipment and ensuring operational continuity. With a high surge current capacity of up to 40 kA, this protector is ideal for power distribution systems, control panels, and industrial automation systems. Its compact, DIN rail-mountable design allows for easy installation in control cabinets, while its robust construction ensures long-lasting performance even in demanding environments. Protect your equipment and extend its lifespan with the BS HFD 24/4M.

Circuit Surge Protector Work - BS HFD 24/4M

The BS HFD 24/4M Circuit Surge Protector is a high-performance device designed to protect electrical circuits from damaging surges, spikes, and transient voltages. It is ideal for use in power distribution systems, control panels, and sensitive electrical equipment. This surge protector ensures the longevity and reliability of your equipment by safely redirecting excess voltage to the ground.
Surge Protection for Low-Voltage Circuits

Key Features

  • Surge Protection

    • Provides effective protection against voltage surges, spikes, and transient overvoltage conditions, preventing damage to connected equipment.

  • High Voltage Capacity

    • Designed to handle high surge currents, ensuring protection even in harsh electrical environments.

  • Durable and Reliable

    • Built with robust components for long-term reliability and performance, even in demanding industrial and commercial applications.

  • Compact Design

    • Space-saving, compact design suitable for easy installation in standard control cabinets or power distribution panels.

  • Universal Compatibility

    • Ideal for use in 24V systems and compatible with a wide range of industrial and commercial equipment.
Surge Protector with Voltage Suppression

Technical Specifications

  • Model: BS HFD 24/4M
  • Nominal Voltage: 24V DC
  • Surge Current Capacity: Up to 40 kA
  • Response Time: <1 ns
  • Mounting Type: DIN rail mount
  • Operating Temperature: -20°C to +60°C
Surge Protection Device Operation

Technical Data

Product Showcase

Surge Protection in Electrical Circuits

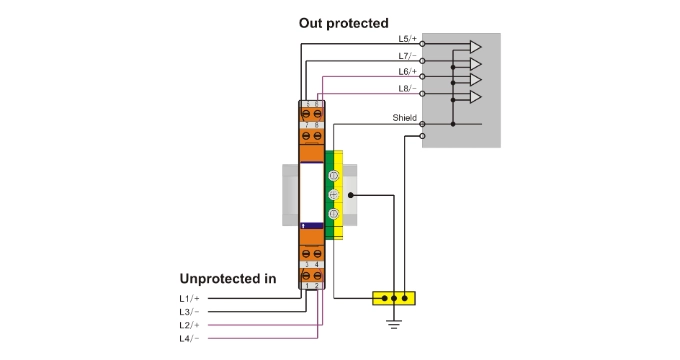

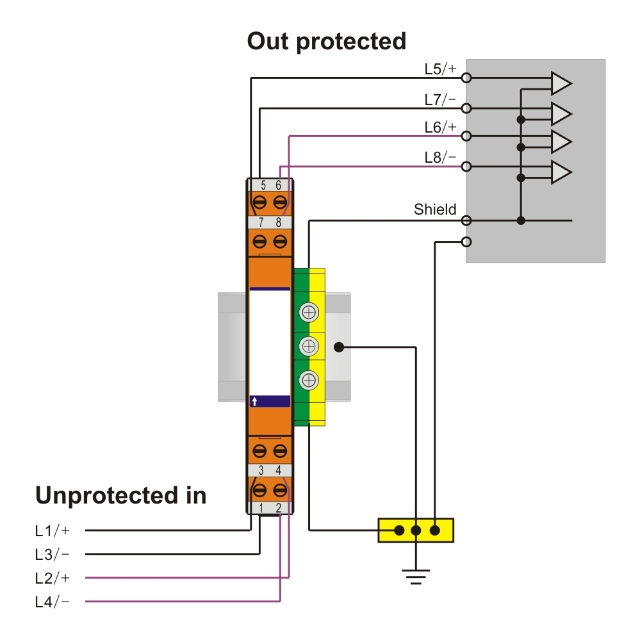

Working of Surge Protector for Circuit
