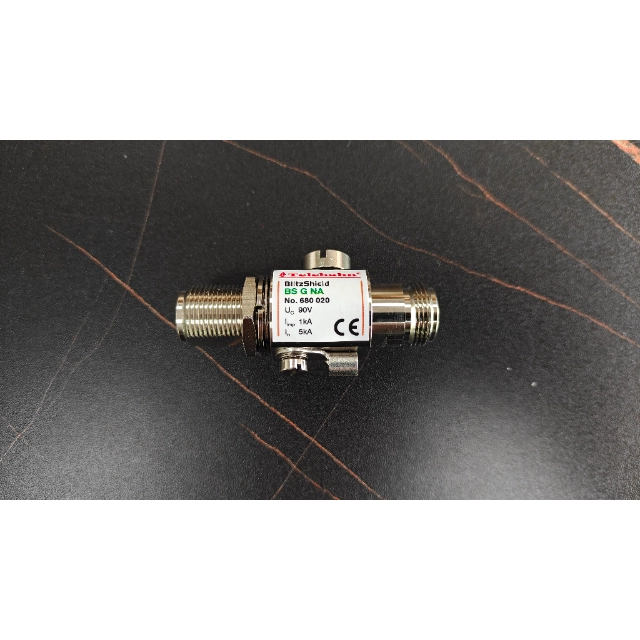

Antenna Surge Protector -BS G NA
The BS G NA (680020) operates as a high-end surge protection device that protects 50 Ω coaxial cable systems within zones LPZ 0B-1 and above. The protective mechanisms of the device against lightning surges and transients make it an appropriate choice for shielding cell sites antenna systems and communication systems. Both system safety and operational protection levels are guaranteed through device certifications IEC 61643-21, EN 61643-21, and GB 18802.21 and its recognized standards.
-
Type
BS G NA
-
Art.-No.
680020
Inquiry
Download Datasheet
For 50 Ω Coaxial Cable(Antenna Feeder) System
0-6000MHz
90V or 250V Optional
N (F-F) plug/socket
High Surge Currents: Imax=20kA(8/20μs)
The Antenna Surge Protector serves to safeguard 50 Ω coaxial cable systems against lightning surges together with various voltage spike disturbances. The device shows its proper functionality across higher-level areas (LPZs) dedicated to low-voltage equipment thus delivering powerful protection. The device offers better ease of service upkeep since its gas discharge tube functions as a replacement unit.
Key Features
- Exchangeable Gas Discharge Tubes: The device maintains its operational lifetime through error-proof exchangeable gas discharge tubes which simplify maintenance operations.
- Surge Current Management: The device operates with superior surge current management because of its large discharge capacity.
- Low Voltage Protection: The control system incorporates a Low Voltage Protection Level both to ensure stabilized signals and to safeguard equipment installations.
- Wide Frequency Range: Perfect for various communication applications.
Advantages
- Antenna and Coaxial Protection: This device guards antenna and coaxial systems operating in outside locations.
- Signal Reliability: The device upholds signal reliability using innovative low-voltage clamping procedures.
- Performance in Challenging Conditions: The electronic device demonstrates top-notch performance in severely challenging environmental conditions that exist across demanding locations.
- Reduced System Interruptions: System operational interruptions become shorter because the users can perform tube replacements for regular maintenance.
Applications
- Communication Tower Protection: The equipment uses its design to shield communication towers at cell sites against harmful lightning surges.
- Antenna Systems: Keeps broadcast and communication antennas operating smoothly.
- Coaxial Cable Systems: The design of Coaxial Cable Systems provides uninterrupted signal transmission across entire RF and telecom network systems.
- Data Communication Centers: Minimizes surge damage to critical data transmission systems.
Technical Data

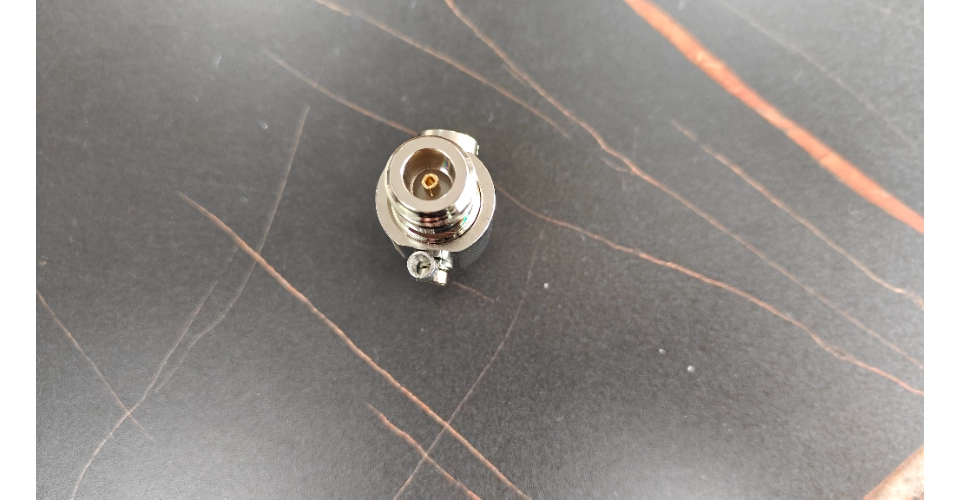

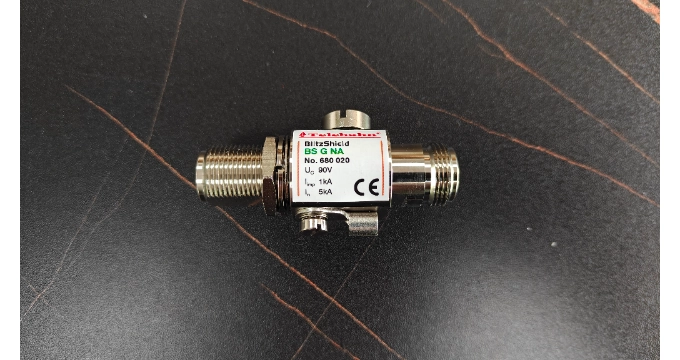

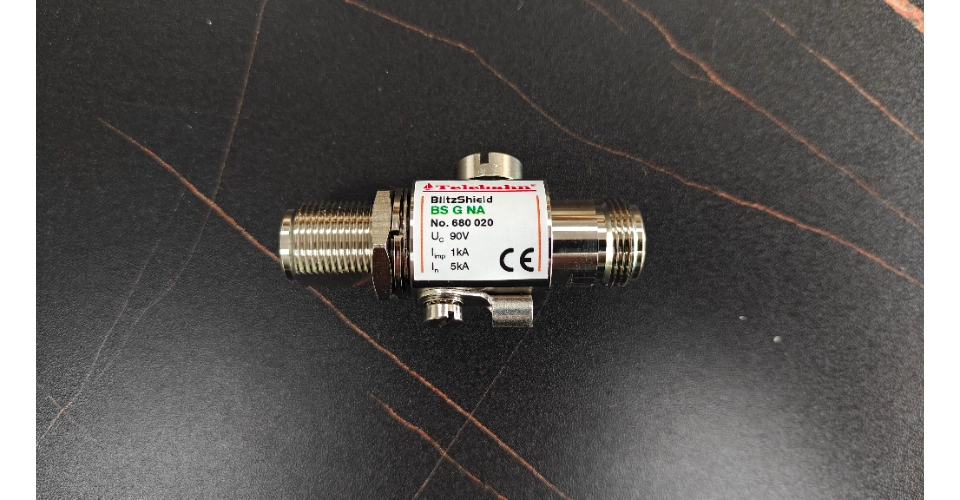

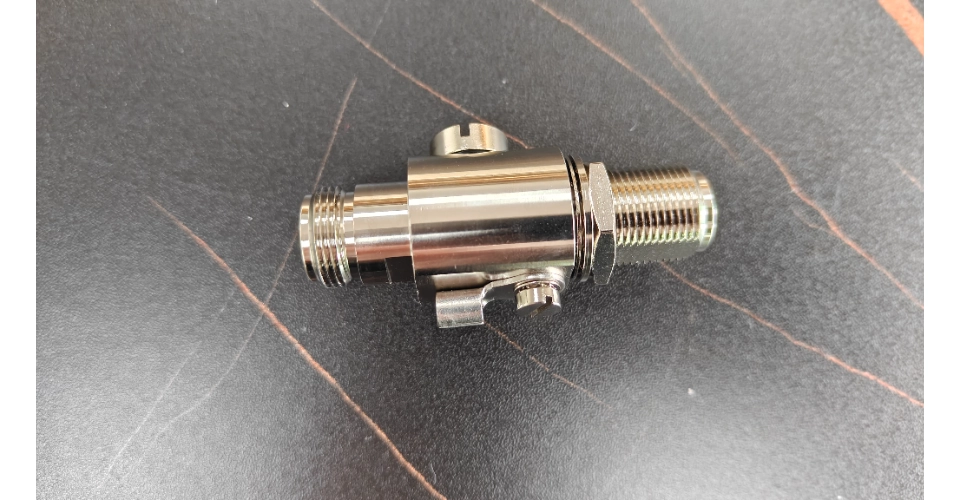

Product Showcase
Mounting (BS G NA)
Mounting (BS G NG)
