240V Surge Protector -BT PUM CGD 240 RM/2P
-
Type
BT PUM CGD 240 RM/2P
-
Art.-No.
815033
-
Features
1. Split Phase/Corner Grounded Delta electrical system combined module SPD for 3W+G circuit. 2. Max. AC short circuit current (Ism) up to 50kA (8/20μs). 3. Current chopping 500A constant current capability 200kA short-circuit current rating. 4. Double thermal disconnector device is more effective than a single one, so the proposed system includes this improvement. 5. Green window will change when fault and also green window will also provide remote alarm control at the same time.
Split Phase/Corner Grounded Delta Electrical Systems(3W+G circuit)
High Energy MOV
In=20kA(8/20μs)
Imax=50kA(8/20μs)
The BT PUM CGD 240 RM/2P is a powerful surge protector. It will safely remove high voltage surges stemming from lightning or the power grid. Network surge protector now offers a surge capacity of up to 50kA and serves to protect delicate apparatus. In addition, due to the modularity of the sub-assembly design, it is much easier to fit and maintain, which means decreased time offline. 240V Surge Protector is built with thermal disconnection for safety, to guarantee efficiency in its operations. Designed for both industrial and commercial applications it provides long-lasting protection to the important segments.
240V Surge Protector - BT PUM CGD 240 RM/2P
The BT PUM CGD 240 RM/2P is a surge protection device that possesses great dependability and is intended for the protection of electrical systems from transient over-voltage and other hostile transients such as lightning and grid instabilities. This advanced guard is designed for industrial, commercial, and home use, the place where consistency of operation and the safety of equipment matter.
Key Features:
- Robust Design: Integrates the module SPD for Split Phase/Corner Grounded Delta electrical systems (3W+G circuit).
- High Surge Capacity: Coordinates maximum discharge currents (Imax) up to 50kA (8 / 20μs).
- Short-Circuit Protection: The device guarantees its safety through an SCCR rating of 200kA during high surge events.
- Thermal Disconnectors: The Dual thermal disconnection mechanism enhances the reliability of the SMA-based devices.
- Status Monitoring: The green window can change its color to highlight faults and allows remote alarm management.
- Quick Response Time: Swift feedback action with response time under microsecond to protect against overvoltage harms.
- Efficient Protection: Provides a very low protection level (AS/NZS-2293.2-VPR) for life-sensitive LV electrical equipment.
Technical Specifications:
- Rated Voltage (Ue): 240V AC
- Maximum Continuous Operating Voltage (Uc): 275V AC
- Nominal Discharge Current (In): 20kA
- Maximum Discharge Current (Imax): 40kA
- Protection Level (Up): ≤1.5kV
- Response Time (tA): <25ns
- Operating Temperature Range: -40°C to +80°C
- Installation Method: DIN rail mounting
Applications:
- Industrial Facilities: Protects factory equipment such as motors, motor control centers, and power distribution systems.
- Commercial Buildings: Best-suited for use in data centers, office buildings as well as large shops and commercial outlets.
- Residential Use: Safeguards all electronic gadgets within the house including household appliances.
- Telecommunication Systems: Protects communication base stations and data transmission equipment from damages or interference by other equipment.
- Renewable Energy Systems: Safeguards solar inverters and wind turbine setups against transients.
Technical Data

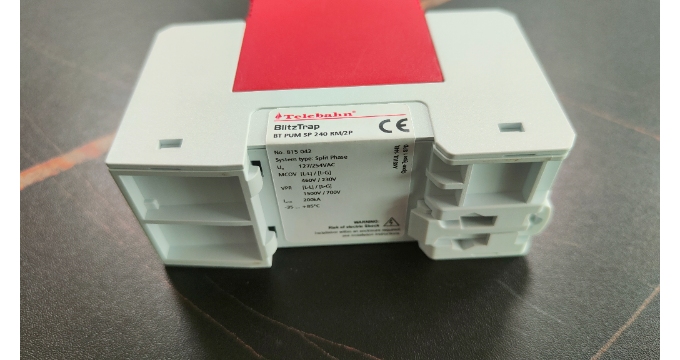

Product Showcase
