D-Sub Connector Surge Protection -BS RS 9P

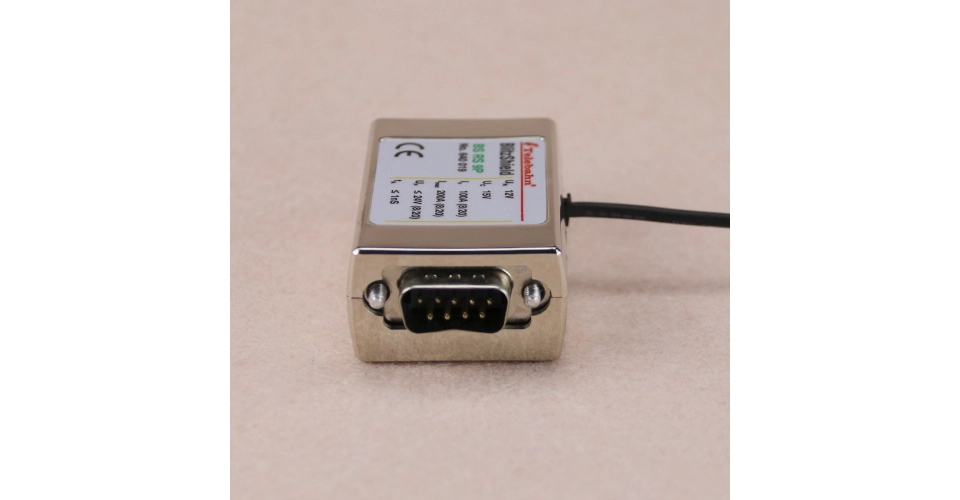

D-Sub Connector Surge Protection BS RS 9P(640019) is for use at LPz 2-3 boundary, provide surge protection for RS485, RS422 or RS432 signal devices form damages.such as surge voltages, operating over voltages, electrostatic discharging and so on. Designed according to IEC 61643-21;EN 61643-21; GB 18801.21.

Type

BS RS 9P
Art.-No.

640019
Features

1.High discharge capacity, low voltage protection level, quick response. 2.Does not impact the normal work of data management devices and system. 3.Apply for high speed transmission devices. 4. 9-Pin for surge arrester full protected.

Inquiry

Download Datasheet

Does not impact the normal work of data management devices and system.

D-Sub Surge Protector

9 PINS

D-Sub Surge Protector

Apply to high speed transmission devices

D-Sub Connector Surge Protector shields sensitive equipment from power surges, electromagnetic interference, and voltage spikes. Designed for serial, VGA, and industrial connections, it ensures signal integrity and prevents data loss. With rapid response and robust protection, it enhances system reliability, prolonging the lifespan of connected devices.

D-Sub Connector Surge Protection

The D-Sub Connector Surge Protection is a specialized device designed to protect electronic systems and equipment using D-Sub connectors from damaging electrical surges and transients. By integrating surge protection into the D-Sub connector, it offers enhanced safety against voltage spikes caused by lightning, power grid fluctuations, or electrical faults. This surge protection ensures the integrity and longevity of sensitive equipment, making it ideal for use in industrial, telecommunications, and data transmission applications.

D-Sub Connector Transient Voltage Suppression (TVS)

Product Features:

Surge Protection Integration:
The surge protection is built directly into the D-Sub connector, offering seamless and space-saving protection for devices that rely on this common connector type.
Efficient Voltage Clamping:
The device effectively clamps excessive voltage during a surge event, preventing harmful spikes from reaching sensitive equipment and ensuring stable operation.
High Response Speed:
It responds rapidly to transient surges, diverting excess energy and minimizing damage to the connected system, preventing downtime or equipment failure.
Durable Construction:
Constructed with high-quality, heat-resistant, and corrosion-resistant materials, ensuring long-lasting protection in harsh environments.
Compatibility with D-Sub Connectors:
Specifically designed to work with D-Sub connectors, commonly used in industrial automation, telecommunications, and computing systems, providing targeted surge protection for these setups.
Wide Operating Temperature Range:
The surge protection device is designed to perform reliably across a broad temperature range, making it suitable for use in various industrial and outdoor environments.
Simple Integration:
The protection device is easy to integrate into existing systems with minimal modification, ensuring a smooth installation process.

Product Advantages:

Prevents Equipment Damage:
Protects valuable electronic equipment from the harmful effects of electrical surges, ensuring a longer lifespan and reduced risk of failure.
Maintains System Integrity:
Safeguards signal transmission and prevents data corruption or system downtime caused by surges, ensuring the continuous operation of critical systems.
Durability and Reliability:
With high-quality construction, the device offers long-term, reliable surge protection, even in harsh or high-demand environments.
Compact and Cost-Effective Solution:
The surge protection is integrated directly into the connector, offering a compact, cost-effective solution without the need for additional external protection devices.

Technical Data

Type	BS RS 9P	BS RS 15P	BS RS 25P
Art.-No.	640037	640015	640137
Nominal voltage d.c. [U_N]	12V	5V	12V
Rated voltage(max. continuous d.c. voltage) [U_c]	15V	8V	15V
Nominal discharge current (8/20μs) (line-SG) [In]	0.1kA	0.2kA	0.1kA
Nominal discharge current (8/20μs)(SG-PG)[I_n]	0.2kA	0.8kA	0.1kA
Nominal discharge current (8/20μs) (I_max)(line-SG) [In]	0.2kA	0.4kA	0.2kA
Nominal discharge current (8/20μs) (I_max)(SG-PG) [In]	0.2kA	1.3kA	0.2kA
Voltage protection level at I_n (line-SG) [Up]	≤ 24V	≤ 16V	≤ 24V
Voltage protection level at I_n (line-PG) [Up]	≤ 200V	≤ 16V	≤ 200V
Voltage protection level at 1kV/us (line-line) [Up]	–	≤ 11V	–
Voltage protection level at 1kV/us (line-SG) [Up]	≤ 21V	≤ 11V	≤ 21V
Voltage protection level at 1kV/us (SG-PG) [Up]	≤ 90V	≤ 11V	≤ 90V
Frequency range[f_G]	10MHz	4MHz	10MHz
Response time(SG-SG) [t_A]	≤ 1ns	≤ 1ns	≤ 1ns
Response time(line-PG) [t_A]	≤ 25ns	≤ 1ns	≤ 25ns
Protective lines	8-line/SG/PG	two-core lines	7-line/SG/PG
Pinning	line:1/2/3/4/5/6/7/8;SG:5 (standy lines disconnected)	2/9: 1st pair 4/11: 2nd pair SG:8; PG:1 (standy lines disconnected)	line:2/3/4/5/6/8/20; SG:7; PG: 1 (standy lines disconnected)
Max. data transmission rate[Vs]	1MBit/s	1MBit/s	1MBit/s
Operating temperature range [Tu]	-40°C…+80°C	-40°C…+80°C	-40°C…+80°C
Mounting on	D-sub, 2 threaded screws	D-sub, 2 threaded screws	D-sub, 2 threaded screws
Connection(input/output)	D-sub, 9 pins	D-sub, 15 pins	D-sub, 25 pins
Earthing via	outgoing cable 1.5mm² x300mm	outgoing cable 1.5mm² x300mm	outgoing cable 1.5mm² x300mm
Enclosure material	Metallised Plastic	Metallised Plastic	Metallised Plastic
Certification	CE; RoHS; ISO 9001:2015;REACH	CE; RoHS; ISO 9001:2015;REACH	CE; RoHS; ISO 9001:2015;REACH
Test standards	IEC 61643-21; EN 61643.21; GB 18802.21	IEC 61643-21; EN 61643.21; GB 18802.21	IEC 61643-21; EN 61643.21; GB 18802.21
Warranty	3 Years	3 Years	3 Years
