DC Surge Suppressor -BT Y PVM 600 RM

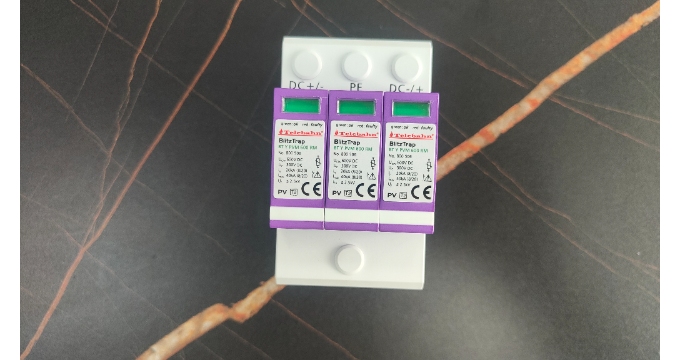

DC Surge Suppressor BT Y PVM 600 RM(800506) is applied in photovoltaic system. The max. PV voltage up to UCPV=600V dc, protecting photovoltaic generator and inverter and so on. Designed according to IEC 61643-11:2011 ; EN 61643-11:2012; GB 18802.1-2011, EN50539-11.

Type

BT Y PVM 600 RM
Art.-No.

800506
Features

1. Combined class II DC surge protector for Photovoltaic(PV) System. 2. Pluggable module, easy for installation and maintenance. 3. Approved falult-resistant Y-circuit, consist of two varistors and thermal disconnection devices. 4. High discharge capacity, quick response. 5. Double thermal disconnection device, providing more reliable protection. 6. Integrated DC-fuse allows safe replacement of protection modules without arc formation. 7. Green window will change when fault and also provide remote alarm control at the same time.

Inquiry

Download Datasheet

600V " Y-circuit" Solar Photovoltaic(PV) System

In=20kA(8/20μs)，Imax=40kA(8/20μs)

T2, 3 Poles

High Energy MOV

35mm DIN Rail，EN 60715

The DC Surge Suppressor BT Y PVM 600 RM is a high-performance surge suppressor designed for 600V DC systems, ideal for photovoltaic (PV) applications. It provides robust protection against voltage surges with a surge capacity of up to 40 kA. Its compact, modular design allows easy integration and maintenance with replaceable modules. Built for durability, it operates reliably in harsh environments. Perfect for renewable energy systems and industrial DC applications, it ensures safety, minimizes downtime, and extends equipment lifespan

DC Surge Suppressor - BT Y PVM 600 RM

The BT Y PVM 600 RM is a premium DC surge suppressor engineered to protect photovoltaic (PV) systems and other DC power circuits from overvoltage events caused by lightning or power surges. Designed for high reliability and efficiency, it ensures the safety and longevity of connected equipment in renewable energy and industrial applications.

Surge Protection for Solar Energy Systems

Key Features

Optimized for PV Systems
- Tailored for 600V DC photovoltaic systems, ensuring precise and reliable protection.
High Surge Capacity
- Handles surge currents up to 40 kA, preventing damage to sensitive equipment.
Replaceable Protection Modules
- Easy maintenance with cost-efficient module replacement.
Compact and Modular Design
- Space-saving design suitable for tight installation spaces.
Robust Durability
- Weather-resistant construction with high-quality materials for outdoor and indoor use.

DC Surge Suppressor - BT Y PVM 600 RM The BT Y PVM 600 RM is a premium DC surge suppressor engineered to protect photovoltaic (PV) systems and other DC power circuits from overvoltage events caused by lightning or power surges. Designed for high reliability and efficiency, it ensures the safety and longevity of connected equipment in renewable energy and industrial applications. Key Features Optimized for PV Systems Tailored for 600V DC photovoltaic systems, ensuring precise and reliable protection. High Surge Capacity Handles surge currents up to 40 kA, preventing damage to sensitive equipment. Replaceable Protection Modules Easy maintenance with cost-efficient module replacement. Compact and Modular Design Space-saving design suitable for tight installation spaces. Robust Durability Weather-resistant construction with high-quality materials for outdoor and indoor use. Technical Specifications Nominal Voltage (Ue): 600 V DC Maximum Surge Current (Imax): 40 kA (8/20 µs waveform) Response Time: < 25 ns Installation: DIN rail mount Protection Mode: Common and differential mode Operating Temperature: -40°C ~ +85°C Applications

Photovoltaic (PV) Solar Systems
Battery Storage and DC Distribution
Renewable Energy Plants
Industrial Automation Systems

Technical Data

Product Showcase

Start Your Project

We will respond to you within 24 hours after receiving your request email.

3 Years Warranty
Free Customized Design
Welcome OEM and ODM Service
CE RoHS CB KEMA TUV Certificates
Surge Protecetive Device（SPD）Factory
30+ Years Surge Protector SPD Experiences

Type	BT Y PVM 150 RM	BT Y PVM 600 RM	BT Y PVM 1000 RM	BT Y PVM 1500 RM
According to IEC 61643-11; EN 61643-11; EN 50539-11	Class II / Type 2
System type	” Y-circuit” Solar Photovoltaic(PV) System
Max. PV voltage [U_CPV]	150V	600V	1000V	1500V
_{Short-circuit current rating [ ISCPV ]}	1000A	1000A	1000A	1000A
Max continuous d.c. voltage [U_CMOV](DC+/DC- – PE )	75V	300V	500V	750V
Voltage protection level at In [Up]	≤ 1.0kV	≤ 2.5kV	≤ 4kV	≤ 6kV
Voltage protection level at 5kA [Up]	≤ 0.8kV	≤ 2.0kV	≤ 3.5kV	≤ 5.2kV
Nominal discharge current (8/20µs) [In] (DC+/DC- – PE )	20kA	20kA	20kA	15kA
Total discharge current (8/20µs) [ In total]	40kA	40kA	40kA	40kA
Max. discharge current (8/20µs) [Imax] (DC+/DC- – PE )	40kA	40kA	40kA	40kA
Response time [t_A]	≤ 25ns
Operating state / Failure indication	Green / Red
Operating temperature range [Tu]	-40°C…+80°C
Cross-sectional area	1.5mm² ~ 25mm² solid/ 35mm²flexible
Mounting on	35mm DIN rail, EN 60715
Number of remote terminals	1
Degree of Protection	IP 20
Enclosure material	Purle module / light gray base, thermoplastic, UL 94-V0
Dimension	3 mods (54mm wide)
Place of installation	Indoor
Certification	CE (LVD, EMC); RoHS；REACH
Type of remote signaling contact	Switching contact
Switching capacity a.c.	250V/0.5A
Switching capacity d.c.	250V/0.1A, 125V/0.2A, 75V/0.5A
Cross-sectional area for remote signaling contact	Max. 1.5mm² solid/flexible
Ordering Information
Type	BT Y PVM 150 RM	BT Y PVM 600 RM	BT Y PVM 1000 RM	BT Y PVM 1500 RM
Art.-No.	800505	800506	800507	800508
Packing unit	1pc(s)	1pc(s)	1pc(s)	1pc(s)
