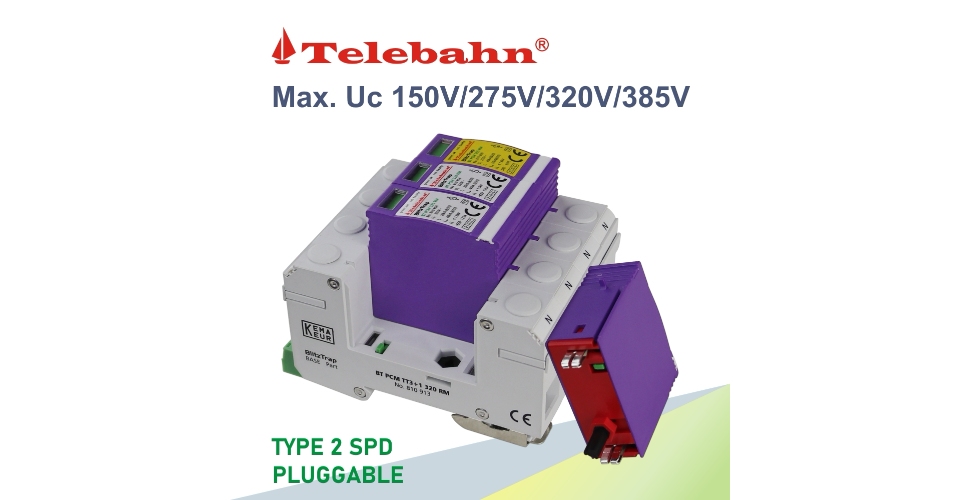

T2 Surge Protection System -BT PCM TT3+1 320 RM SPD
BT PCM TT3+1 320 RM(810913) for installation at LPZ 0B-1 or higher, protecting low voltage equipment from surge damage. The modular SPD Class II (Class C) protects TT/TN-S(“3+1” circuit) power supply systems. The product follows the designing principles from IEC 61643-11:2011 ; EN 61643-11:2012; GB 18802.1-2011.
-
Type
BT PCM TT3+1 320 RM
-
Art.-No.
810913
Inquiry
Download Datasheet
Location of Use:
Sub-Distribution Boards
Sub-Distribution Boards
System Type:
Three Phase, TN-S/TT
Three Phase, TN-S/TT
Protection Elements:
High Energy MOV+ High Energy GDT
High Energy MOV+ High Energy GDT
Surge Ratings:
In=20/40kA(8/20μs)
In=20/40kA(8/20μs)
High Surge Currents:
Imax=40/65kA(8/20μs)
Imax=40/65kA(8/20μs)
The T2 Surge Protection System stands as an advanced solution meant to protect low-voltage power systems operating in TT/TN-S circuits. The modular Class II SPD delivers dependable surge protection to prevent equipment damage by supplying advanced surge suppression in industrial environments and commercial settings and residential applications.
Key Features
- Superior Surge Defense: This device provides superior surge defense for critical systems because it can handle up to 40/65 kA (8/20 µs) surge capacity ratings.
- Plug-in Modules: The device features plug-in modules that allow operators to effortlessly conduct service and repairs.
- Automatic Thermal Disconnection: Automatic thermal disconnection devices provide safety protection through their fault-triggered disconnect function.
- Fault Indicator and Remote Alarm: The system displays a change in the green window to a red color to show fault occurrence while enabling remote alarm functions.
- Robust Protection Elements: Utilizes high-energy MOV (Metal Oxide Varistor) and GDT (Gas Discharge Tube) for quick response and high discharge capacity.
Applications
- Industrial equipment protection: Shields machines and their control systems from power surges.
- Power distribution networks: Protects the networks from electrical surges.
- Commercial Buildings: Protects sensitive electronics and equipment from transient overvoltage.
- System distribution boards: Stops connected equipment from getting damaged by surges.
Advantages
- The advanced surge protection system delivers dependable lightning strike and power surge protection through its capability to handle large surge currents up to 40/65 kA.
- The device combines a green-to-red indicator window and remote alarm control for fast fault detection, improving system availability.
- Raceways of pluggable modular construction simplify the protection module swap process, shortening response time for maintenance and lowering equipment outage periods.
Technical Data
Product Showcase
Mounting
